Dressing

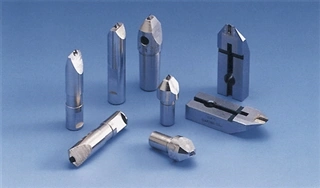

Diamond Forming Dressers
Diamond forming dresser is made by polishing the diamond at the tip into a roof or wedge shape. The diamond part is polished and formed and is very vulnerable to impact. If the diamond is mounted on the jig in an inclined position, the diamond will be shocked and may be damaged, so it must be mounted correctly.
The depth of cut should be kept within 0.02 mm if possible, and the feed speed should be within 250 mm/min to reduce the risk of damage on the diamond, although it is related to the surface roughness. Always apply cooling water when using the tool. Especially in the case of plastering, the forming distance is long and heat is generated easily, which accelerates the wear of the diamond and shortens its life.
It is used for angular grinding, stepped cylindrical grinding, screw grinding, and gear grinding.

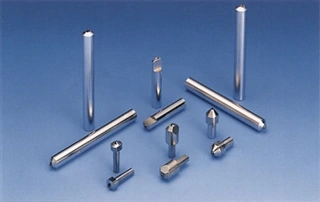

Single-point Diamond Dresser
These tools are used to recover the grinding performance of general grinding stones and to form the stones in a short period of time. The size used is determined by the width and diameter of the grinding stones and the grinding volume.

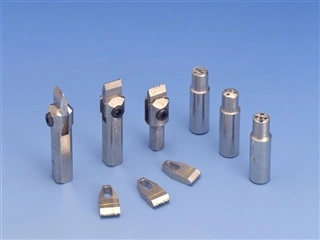

Multi-point Diamond Dressers
These dressers are used for rough dressing to recover the grinding performance of general grinding stones. They are more economical than single-point diamond dressers.
Diamond Impregnated Dresser
These dressing tools, which are used to recover the grinding performance of general grinding stones, are sintered from diamond and metal powders. This mixture helps to keep their cutting edges sharp for extended periods of time.

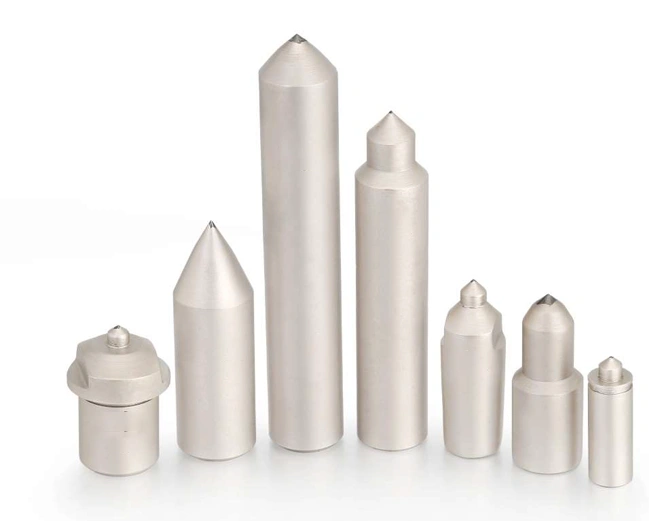

Conical Diamond Dresser
A Conical Diamond Dresser is a precision tool designed for use in grinding operations. Featuring a conically shaped diamond tip, it is ideal for dressing and truing grinding wheels—ensuring their surface remains accurate, sharp, and ready for optimal performance. Its fine point allows for precise contact, delivering consistent and reliable results in high-precision applications.

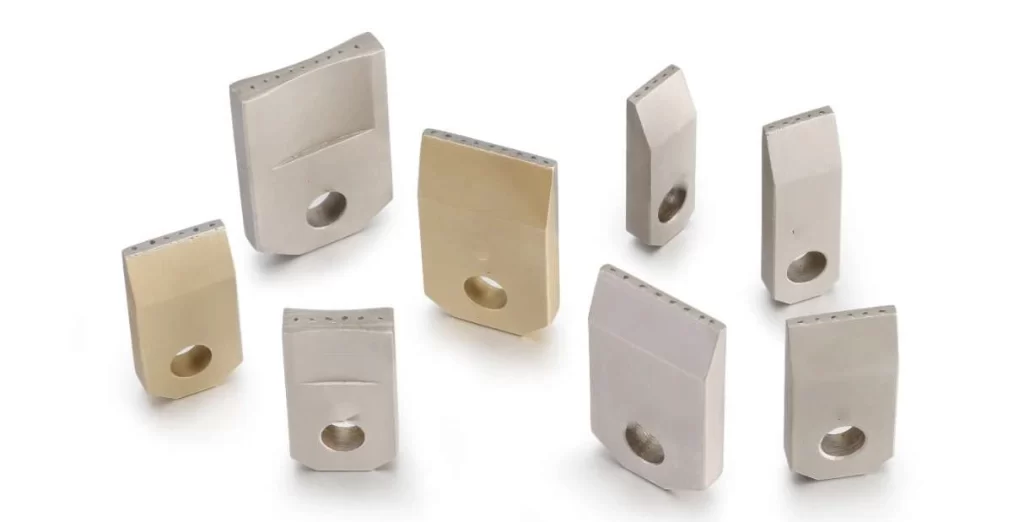

Needle Blade Dresser
The Needle Blade Dresser is a specialized diamond dressing tool engineered for high-precision grinding and machining applications. Designed with a slender, needle-like blade composed of industrial-grade diamonds, this tool excels in reshaping and maintaining the surface of grinding wheels used in fine-tolerance operations.

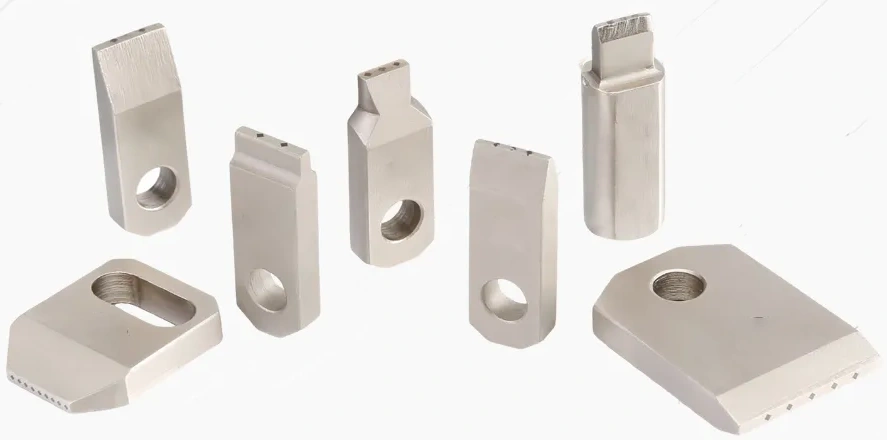

MCD/CVD Blade Diamond Dresser
The MCD Blade Dresser (Monocrystalline Diamond Blade Dresser) is a high-precision dressing tool crafted from monocrystalline diamond – a single crystal of diamond known for its exceptional hardness and cutting efficiency. Engineered for performance, this tool is used to dress and reshape abrasive grinding wheels, ensuring they remain sharp, clean, and effective throughout the grinding process.
