Cutting

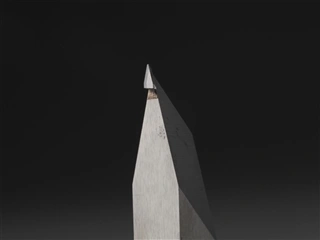

“Arcceed” mono-crystal diamond cutting tool
This is a mono-crystal diamond radius cutting tool with a cutting edge waviness of 50 nm or less. It realizes high-precision machining, thus reducing mold production processing requirements. Due to its fine rake and clearance surface, it can elicit better performance of a 3-axis machining device and improve the copying performance of molds. It also realizes high-precision machining by a 2-axis machining device.
[Typical applications of highly contoured mono-crystal diamond cutting tools]
Camera lens molds for smartphones, PC and tablets, pickup lens molds, ultra-precision machining, infrared lenses, various spherical and aspherical lenses.
“Arcceed” mono-crystal diamond end mill
This high quality mono-crystal diamond ball end mill can be used at speeds up to 100,000 revolutions per minute (RPM). It has a fine cutting edge and a low axis deviation. W.A.90 products will be available.

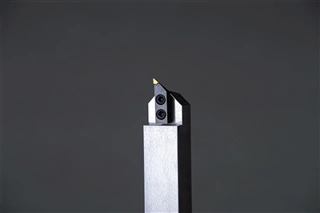

Mono-crystal diamond ultrafine cutting tool
These mono-crystal diamond bites have fine cutting edges made of single-crystal diamonds, which have excellent wear resistance and can make the edges very sharp. By using single-crystal diamond microbites, a cutting edge controlled in micrometers (μm) is transferred to a workpiece, and a fine groove pattern can be formed with high precision and a continuous pitch.
[Typical applications of mono-crystal diamond ultrafine cutting tool]
Machining of optical films for FPDs and precision molds for optical elements Micro-pattern forming and planer machining Machining of diffraction gratings Other MEMS and bio-related micro-pattern machining

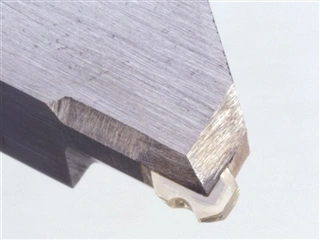

Diamond forming cutting tool
This is a single-crystal diamond forming cutting tool manufactured using our forming and polishing technology. It realizes forming mirror machining for high-precision production of complex shapes consisting of plastics or soft metals.

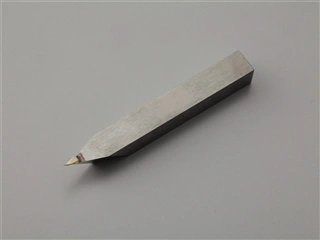

Mono-crystal diamond cutting tools / MCD bites
We have over 25 years of experience in manufacturing single-crystal diamond bites for cutting processes and have supplied tools for precision machining applications periodically.
By grinding Mono Crystal Diamond (MCD), the hardest material on earth, to a sharp cutting edge, mirror-finish machining is possible in cutting that cannot be obtained with ordinary cemented carbide or PCD (polycrystalline diamond) bites.

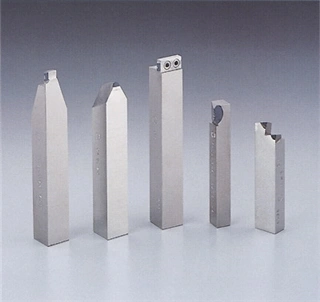

“Hi-PAX” PCD/PCBN cutting tools
Compared to carbide tools, a highly accurate cutting surface can be obtained, the tool life is several tens of times longer, and the effort and time required for tool replacement is reduced. PCD is used for machining ceramics, resins, and nonferrous metals, and PCBN is used for machining high-hardness alloy tool steels and difficult-to-cut nickel alloys.

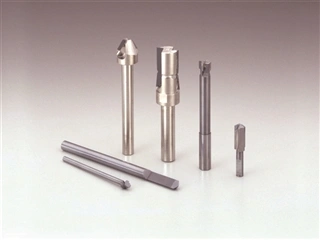

“Hi-PAX” PCD end mills / reamers
These tools are widely used for the precision machining of plastics, aluminum alloys, carbon materials, and ceramics. They can also be used as wood router bits. The tools produce fine finished surfaces that cemented carbide / tungsten carbide tools cannot match, offer high abrasion resistance, and can last up to ten times longer than cemented / tungsten carbide tools.

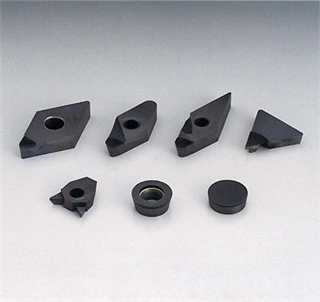

“Hi-PAX” PCD/PCBN inserts
These inserts can be attached to cutting tools much like cemented carbide / tungsten carbide inserts. However, compared to carbide inserts, these inserts produce finer finished surfaces and can last up to ten times longer. They can also be made in various shapes and the most appropriate chip material for target work materials can be available.
